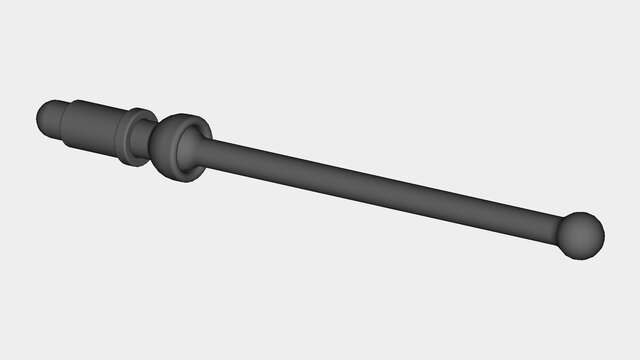

7-Cylinder Radial Engine

Software : 3DS CATIA V5
Scale : 1:4
Size : 440 x 440 x 500 mm
Time : 120 Hours
Credit :

1. https://grabcad.com/library/7-cylinder-radial-engine-3
2. www.erfa-cad.ch/+3_Projekte/B10_Sternmotor/7-Zylinder-Sternmotor.zip

Note:

• Excellent challenge to test CATIA modeling skill.
• Consists of 75 Parts, 13 Subassemblies, 550+ Items.

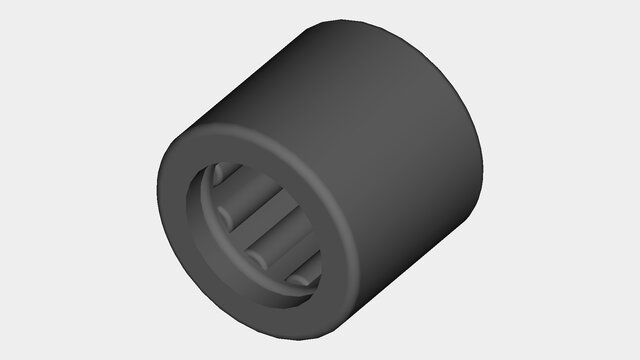

• Standard Parts such as Bolts, Nuts, Circlips, Bearings were modeled based on ISO/DIN and used.
• Propeller was modeled in Generative Shape Design Workbench using the NACA 4-digit series aerofoils and Macro option.
• Reused Ignition Plug, Inlet Pipe and Exhaust Pipe from Mr. Gutleb's Model.
