Composite gummy molds

There was a problem with client's existing gummy molds.
So I needed to recreate those from direct measurements and factory drawings.

After a recreating an original mold I made a composite plastic-silicone mold, which allows for hot-swapping of a silicone part, to increase flexibility when it comes to available shapes of gummies.

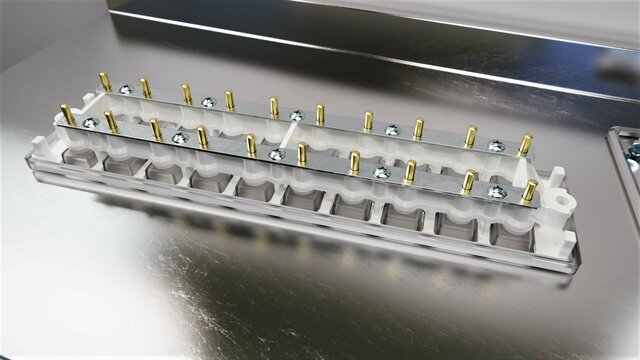

The following renders represent the final product in somewhat realistic work environment.

No model attached. It's a rendering skills showcase.
