Reverse Engineering/Surfaces from Scanned Mesh Data

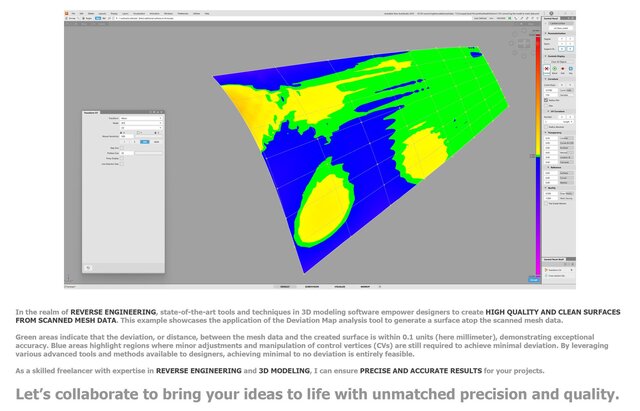

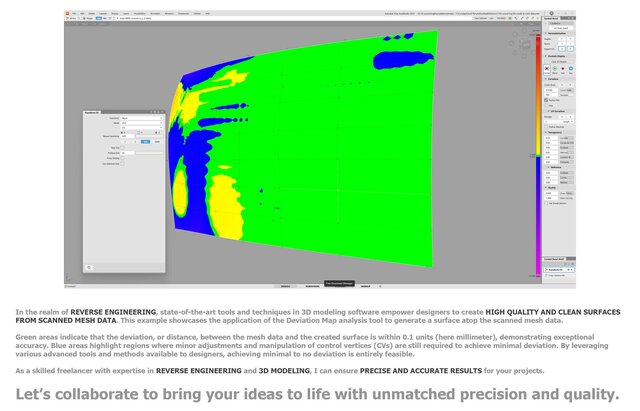

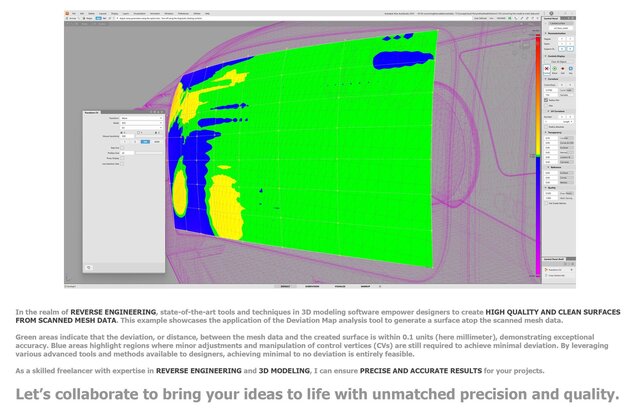

In the realm of REVERSE ENGINEERING, state-of-the-art tools and techniques in 3D modeling software empower designers to create HIGH QUALITY AND CLEAN SURFACES FROM SCANNED MESH DATA. This example showcases the application of the Deviation Map analysis tool to generate a surface atop the scanned mesh data. Green areas indicate that the deviation, or distance, between the mesh data and the created surface is within 0.1 units (here millimeter), demonstrating exceptional accuracy. Blue areas highlight regions where minor adjustments and manipulation of control vertices (CVs) are still required to achieve minimal deviation. By leveraging various advanced tools and methods available to designers, achieving minimal to no deviation is entirely feasible. As a skilled freelancer with expertise in REVERSE ENGINEERING and 3D MODELING, I can ensure PRECISE AND ACCURATE RESULTS for your projects. Let’s collaborate to bring your ideas to life with unmatched precision and quality.
