Work platform

Report

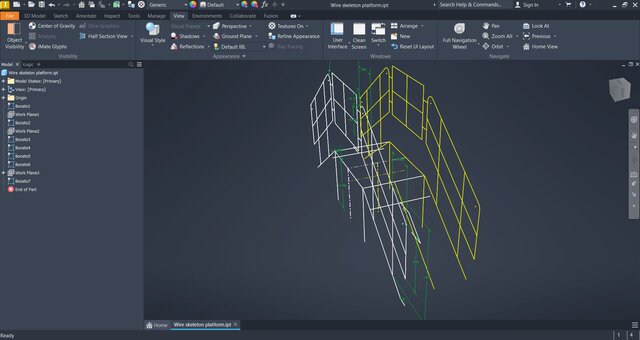

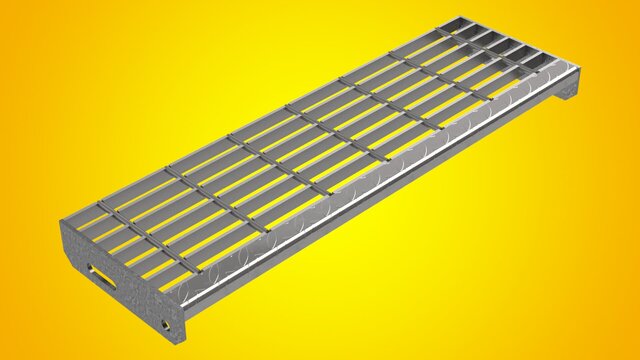

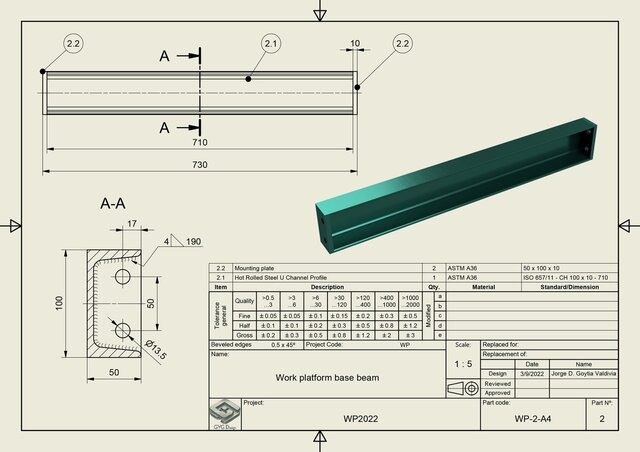

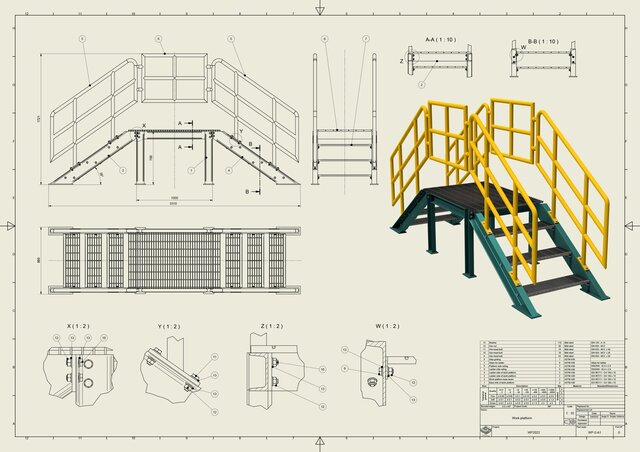

This project allows obtaining several versions of the same model. The width of the platform is fixed and is defined by the grating rung based on the ANSI/NAAMM MBG 531-93 STANDARD. The height and length of the platform can be defined by an iLogic form from Autodesk Inventor Professional, as shown in the video. Once defined, the bill of materials and manufacturing drawings will be updated for production.
